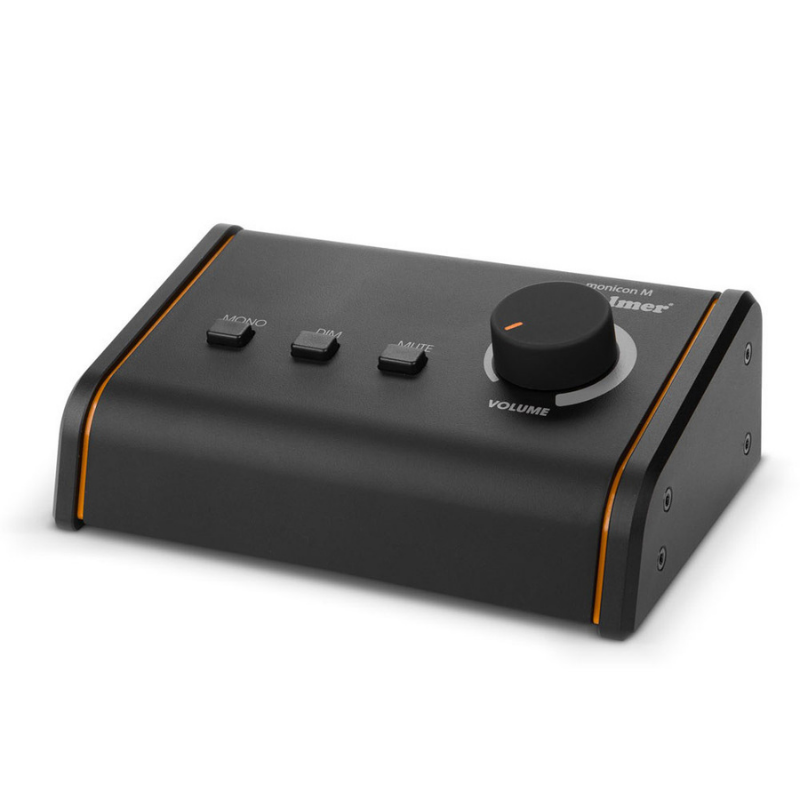

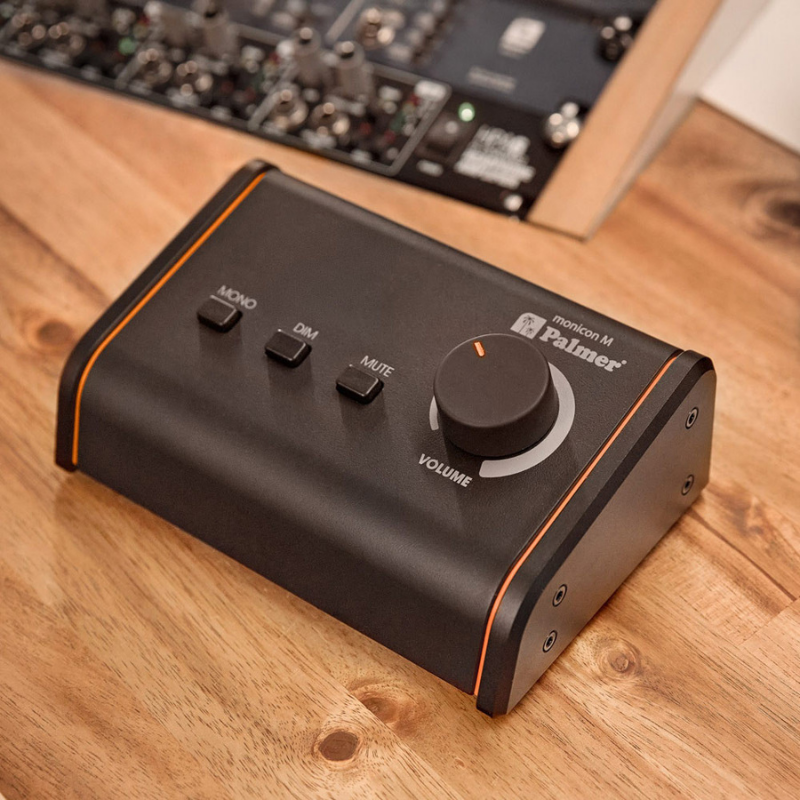

The MONICON M is a compact passive volume controller for flexible studio set-ups. It can be easily connected to audio interfaces, computers, or mobile devices, either via balanced XLR/TRS combo sockets or a 3.5 mm jack input. The output, which is either balanced via XLR or 3.5 mm jack sockets, helps supports both professional studio monitors and compact loudspeaker systems.
The large analogue volume control makes it possible to precisely control the level of volume without any loss in quality. The signal flow and monitoring situation can be adjusted quickly and intuitively using the “Mono,” “Dim,” and “Mute” buttons.
Thanks to the completely analogue signal path, the sound remains unaltered and latency-free. The MONICON M is the perfect control centre for project studios, editing suites, and multimedia workstations – wherever direct access and precise control are required.

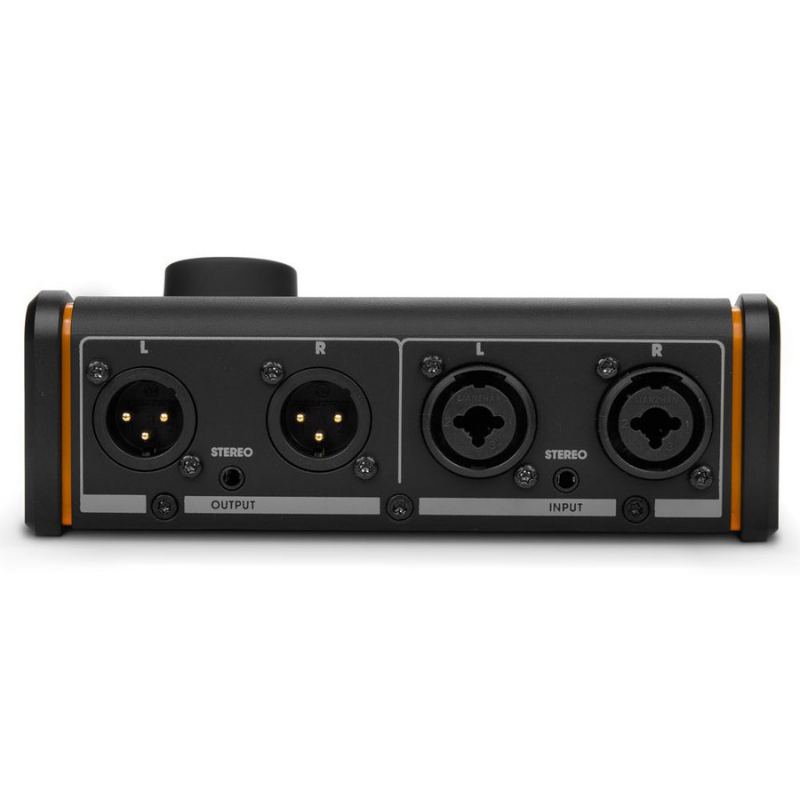

Input: 1x Stereo (balanced XLR/TRS Combo and 3.5 mm jack)
Output: 1x Stereo (balanced XLR and 3.5 mm jack)
Large precision volume control

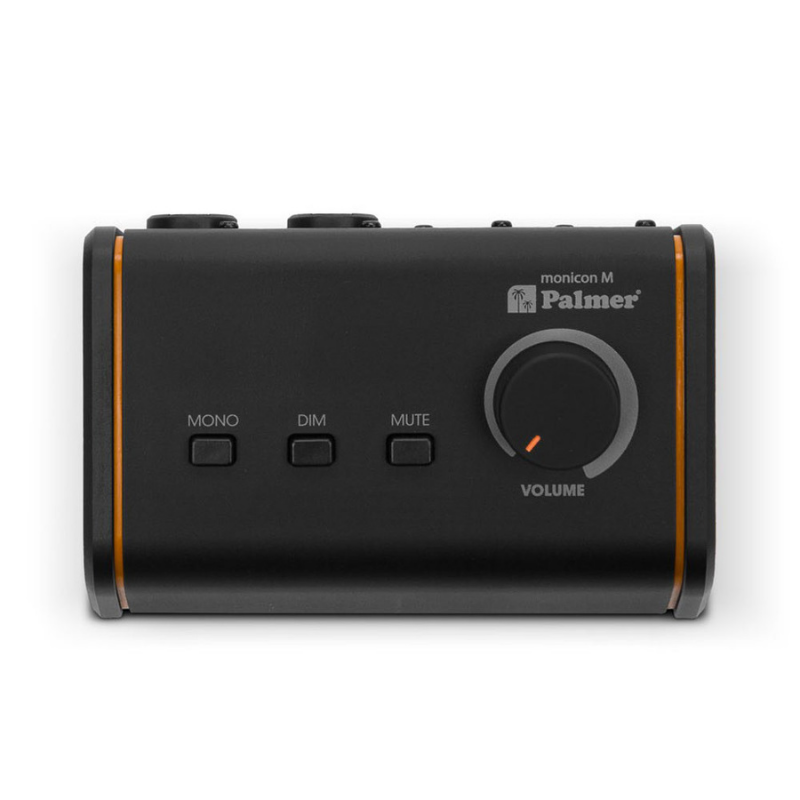

Dedicated switches for MONO, DIM and MUTE
Compact format for project studios and multimedia setups
Latency-free analogue audio signal path
Engineered in Germany
Specifications
Type
Passive
Material
Aluminium
Material
Steel sheet
Frequency response (±0.2 dB, rel. Avg)
20 - 20,000 Hz
Colour
Black
Inputs
Number of balanced line inputs
2
Balanced Line-In connector type
XLR combo socket
Number of unbalanced line inputs
1
Unbalanced Line-In connector type
3.5 mm Jack TRS
Line input performance
Input impedance (balanced)
20 kΩ
Input impedance (unbalanced)
10 kΩ
Min. SNR (< 1% THD, 1 kHz, unity, A-weighted)
112 dB
Outputs
Number of unbalanced line outputs
1
Unbalanced line outputs connector type
3.5 mm Jack TRS female
Number of balanced line outputs
2
Balanced line outputs connector type
XLR 3-pole male
Line output performance
Max. output level (<1 % THD, 20 Hz - 20 kHz)
20 dBu
Dynamic range (AES17)
> 115 dB
Environmental
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Dimensions & weight
Width
160 mm
Height
62 mm
Depth
106 mm
Weight
480 g
Crosstalk
-79 dB
