Overview

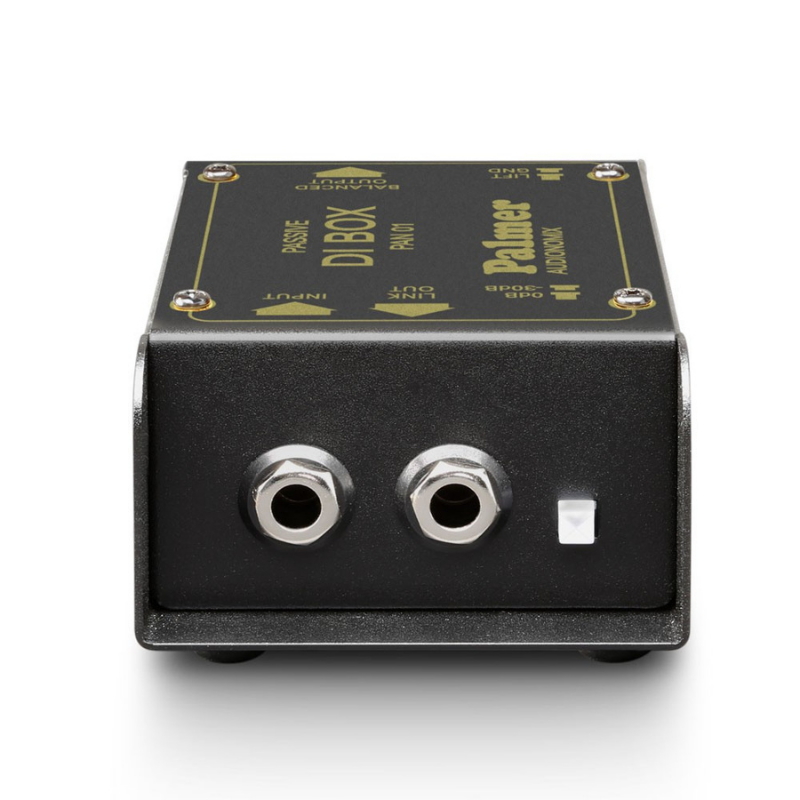

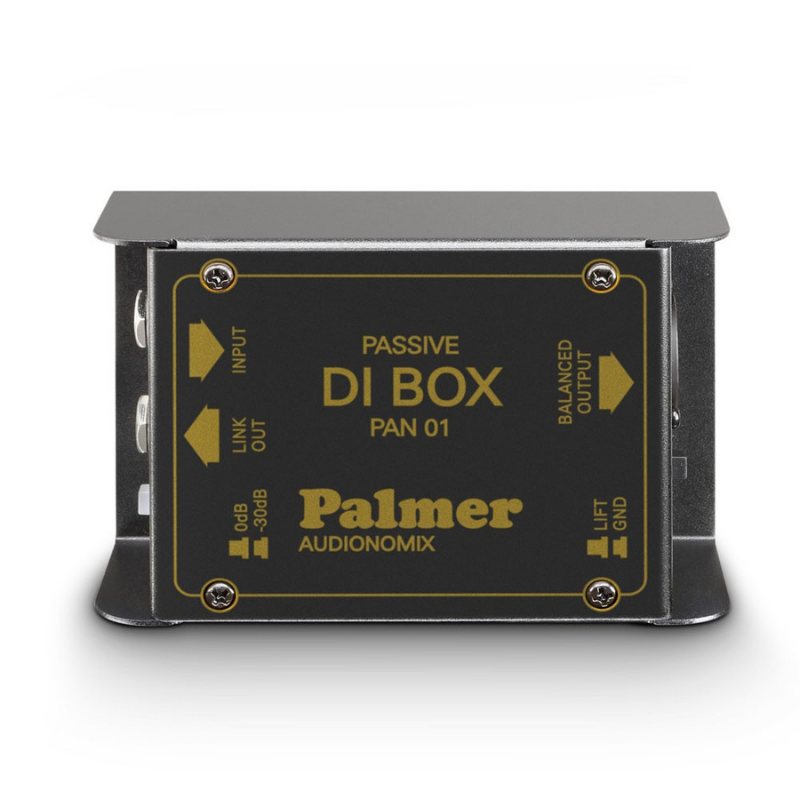

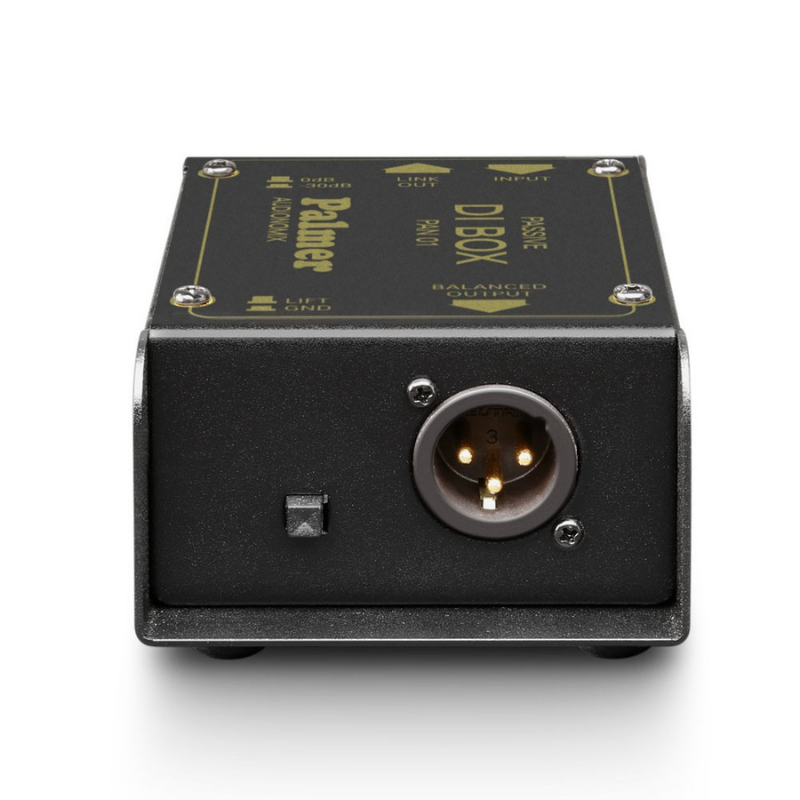

Passive DI box. Jack input with parallel "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

  • Wide range of authentic tube amplifier tones
  • Selectable amplifier styles, gain structure and mic position emulation
  • Master drive, level, bass and treble controls
  • Superior signal-to-noise ratio
  • Ideal for direct recording
  • Doubles as distortion pedal, practice amp and DI box
  • Pure analogue device

 

Specifications
Product type DI Boxes
Type passive
Channels 1
Inputs 1
Input connectors 6.3 mm jack
Max. input level + 54 dBu
Input impedance (@ 60 Hz) 60k Ohm(s)
Input pad 0 / -30 dB
Outputs 1
THRU outputs/channel 1
Output connectors 6.3 mm jack
Output connectors XLR
Max. output level + 4 dBu
Output impedance 600 Ohm(s)
Frequency response 20 - 20000
Transformer balanced Yes
Ratio 10 : 1
Controls attenuator
Controls ground lift
Cabinet material sheet steel
Cabinet surface Powder coated
Width 110 mm
Depth 73 mm
Height 42 mm
Weight 0,34 kg
