Palmer PAN 02 Pro - Professional DI Box Active
Overview

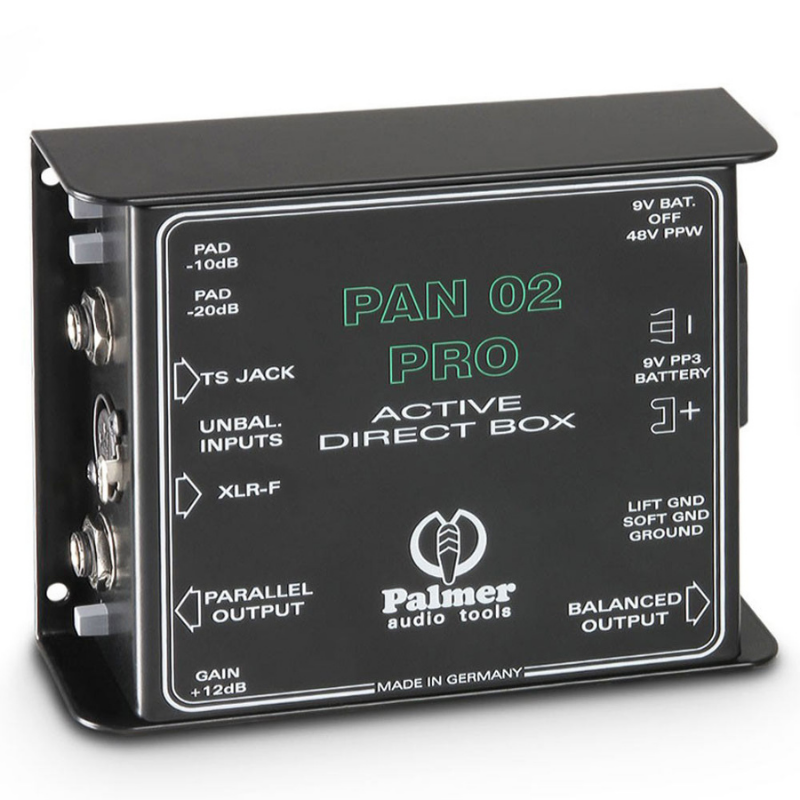

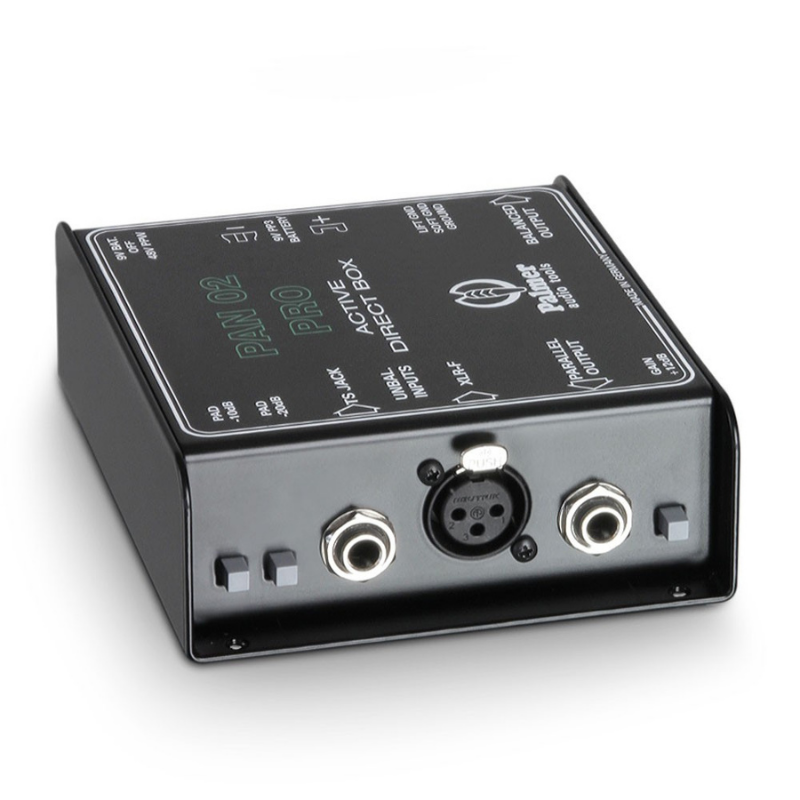

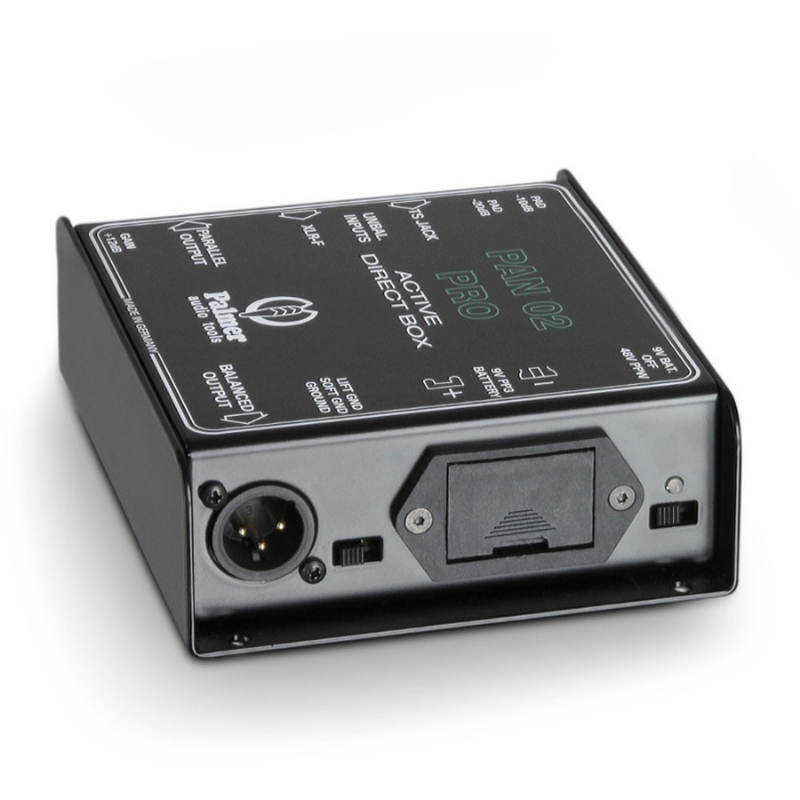

The Palmer PAN02 PRO is an active DI-box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The Groundlift switch has a ""lift"" position allowing adjustments between a ""soft and hard grounding"" . The balanced output is achieved with a high quality transformer in the Mumetall housing that was specially developed for this purpose. The PAN02 Pro can be powered either with a 9 V battery or 48 V phantom power. A two-colour LED indicates which source supplies the power.
- First-class Active Di-box
- Unbalanced XLR Input
- 3-way attenuator (-10, -20, -30dB)
- Switchable gain (12dB)
- Max. Output voltage +20 dB
- Soft ground lift
Specifications
| Product type | DI Boxes |
| Type | active |
| Channels | 1 |
| Inputs | 2 |
| Input connectors | 6.3 mm jack |
| Input connectors | XLR |
| Max. input level | + 45 dBu |
| Input impedance | 0dB & 12 dB: 1 M Ohm(s) |
| Input impedance | -10 & -20 dB: 70 k Ohm(s) |
| Input impedance | -30 dB: 40 k Ohm(s) |
| Input pad | 0 dB, -10 dB, -20 dB, -30 dB |
| Outputs | 1 |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack |
| Output connectors | XLR |
| Max. output level | + 20 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 20 - 20000 |
| Transformer balanced | Yes |
| Ratio | 3.16:1, 10:1, 31.6:1, 1:4 |
| Controls | attenuator |
| Controls | battery/+ 48 V Power |
| Controls | Boost |
| Controls | ground lift |
| Operating voltage | +48 V phantom power |
| Operating voltage | 9 V block |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 116 mm |
| Depth | 140 mm |
| Height | 43.5 mm |
| Weight | 0.85 kg |
