Palmer PAN 03 - 19" DI Box 4-Channel Active
Overview

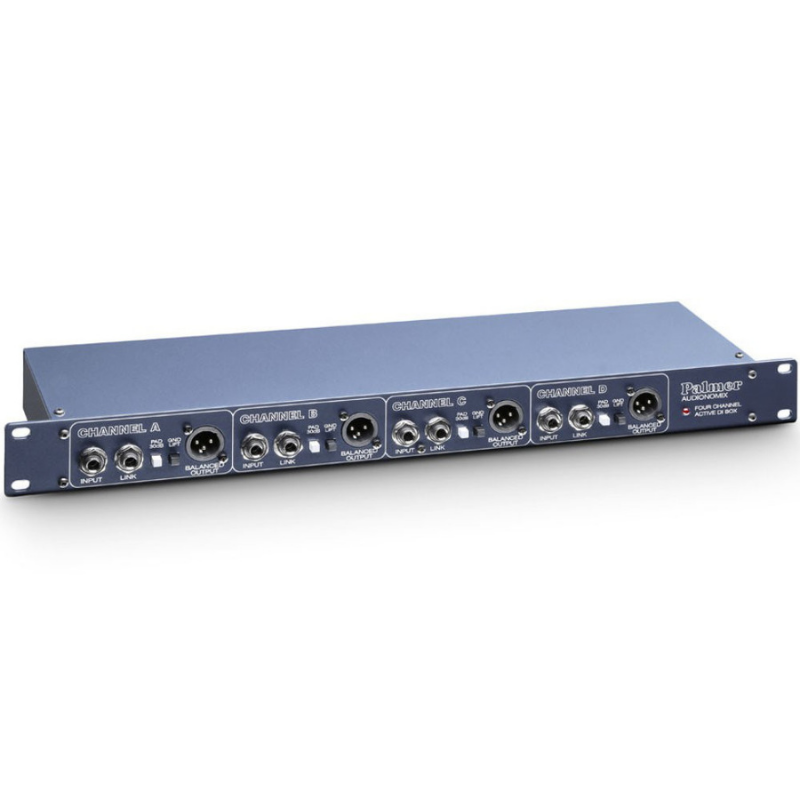

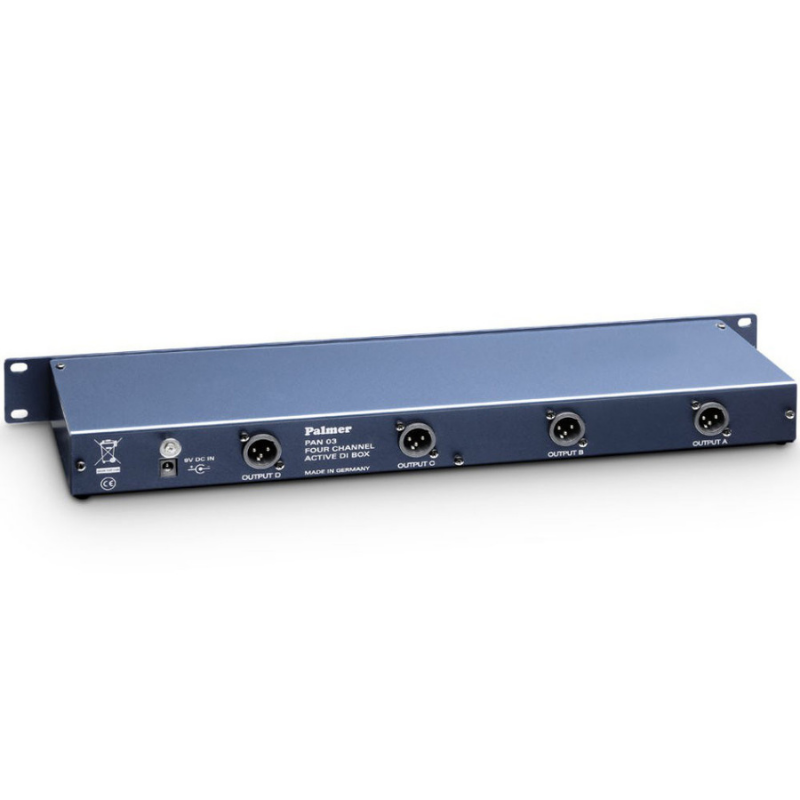

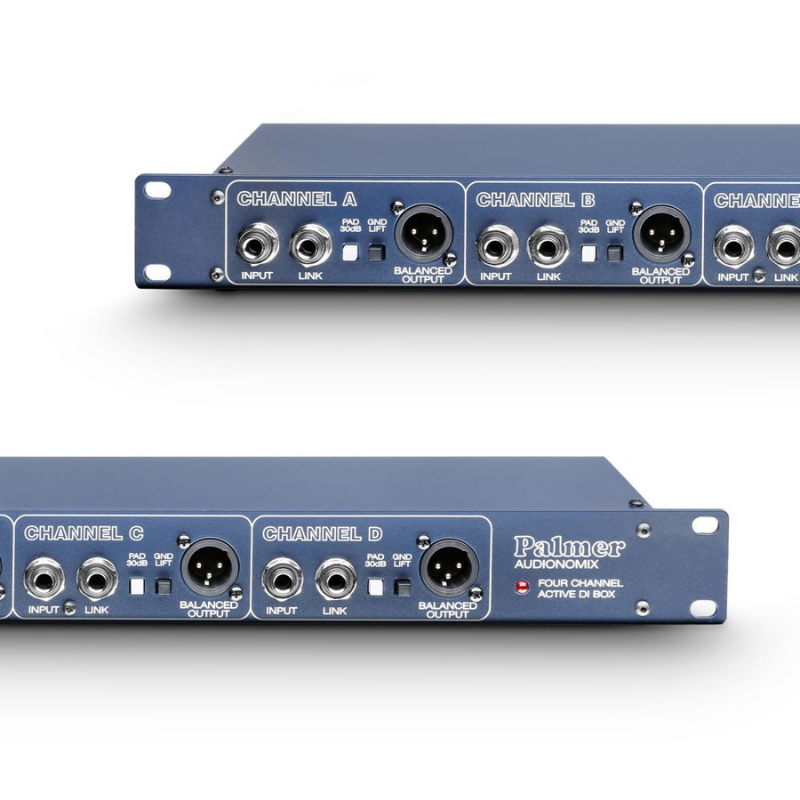

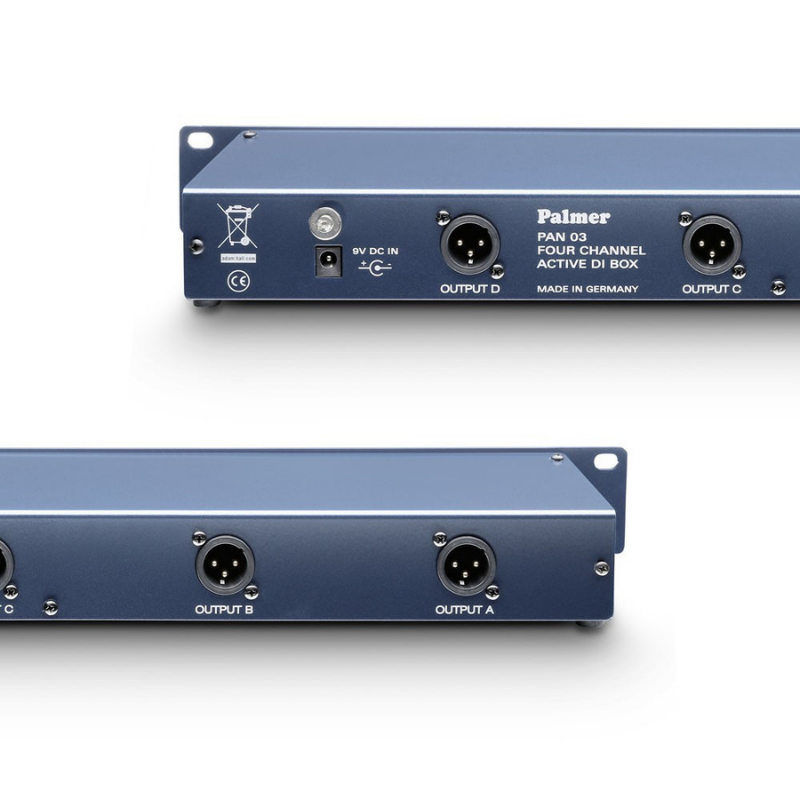

Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected.Active 4 x DI box, 19"" format. Technical specifications identical to the PAN-02, however, the PAN-03 is built for mains operation. All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.
Specifications
| Product type | DI Boxes |
| Type | active |
| Channels | 4 |
| Inputs | 4 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 45 dBu |
| Input impedance | (@ 60 Hz) 1 M Ohm(s) |
| Input pad | 0 / -30 dB |
| Outputs | 4 (+ 4 parallel XLR outs) |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack |
| Output connectors | XLR |
| Max. output level | + 10 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 10 - 20000 |
| Transformer balanced | Yes |
| Ratio | 10 : 1 |
| Indicators | Power |
| Controls | attenuator |
| Controls | ground lift |
| Operating voltage | external |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 480 mm |
| Width | 19 "" |
| Depth | 90 mm |
| Height | 45 mm |
| Height | 1 U |
| Weight | 1.6 kg |
