Palmer PAN 03 PASS - 19" DI Box 4-Channel Passive
Overview

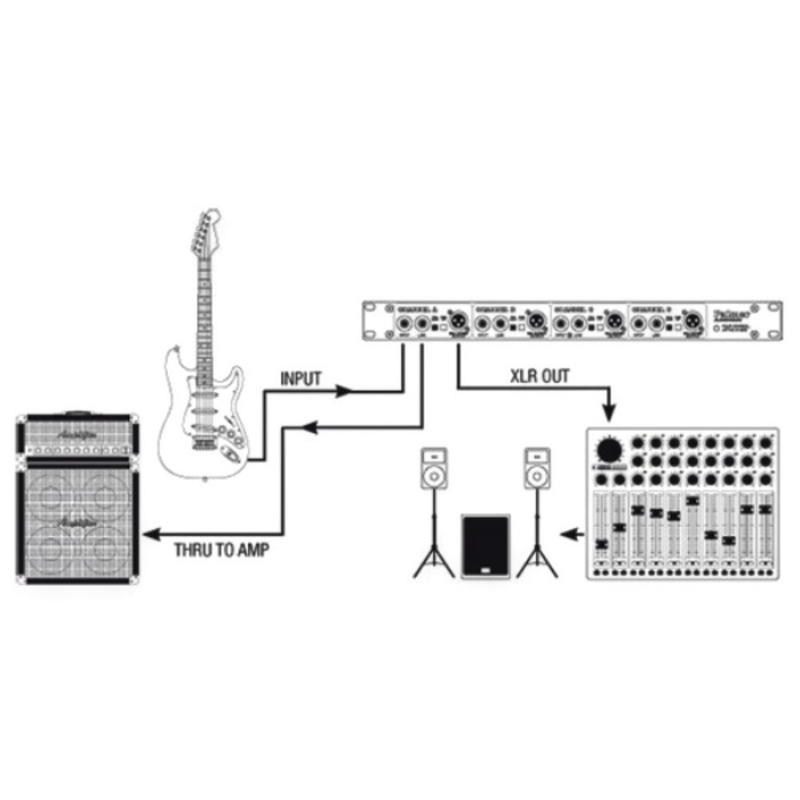

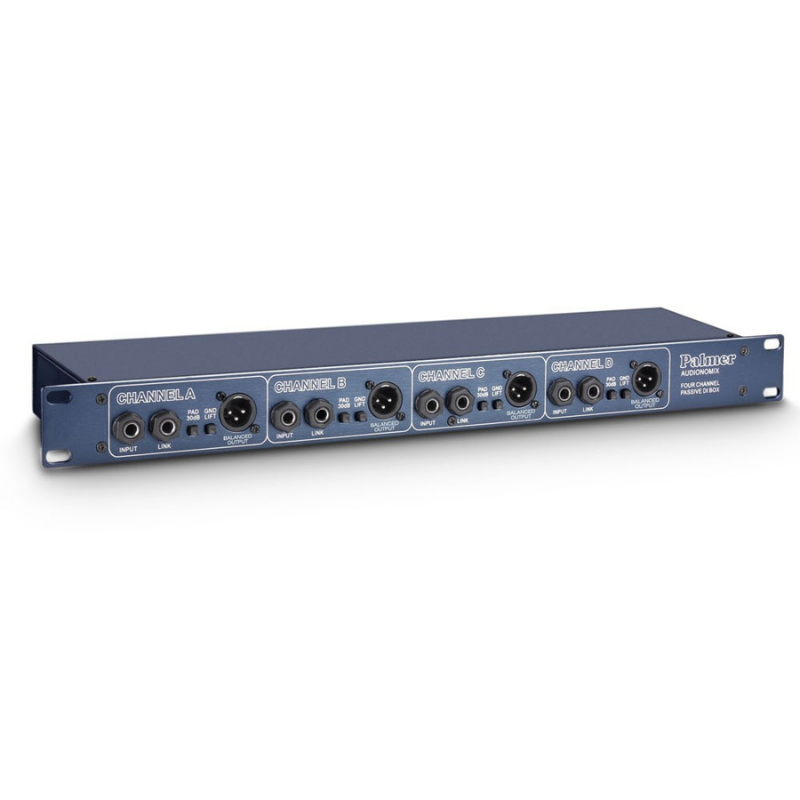

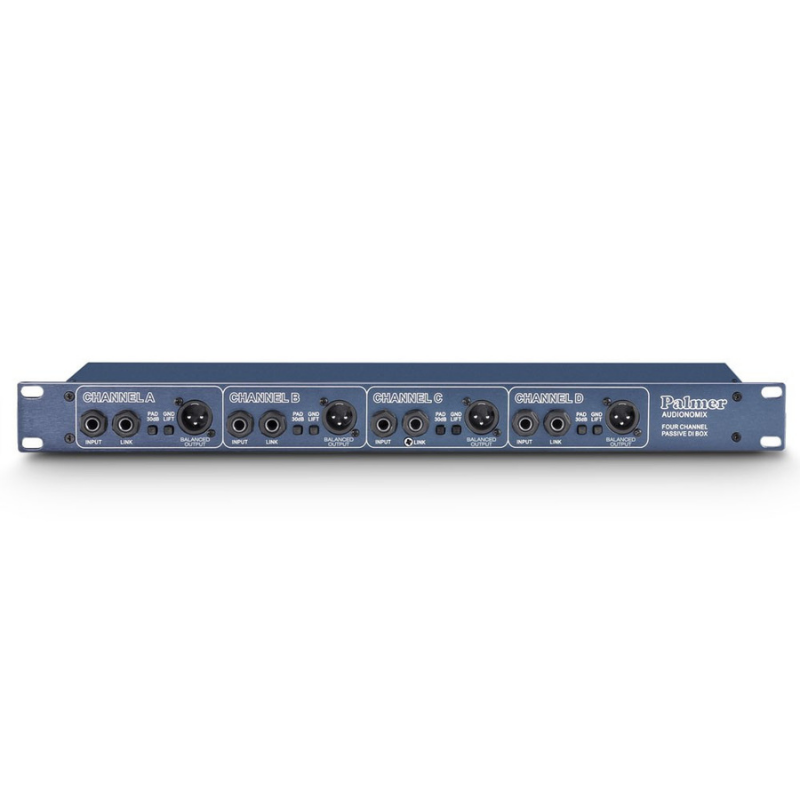

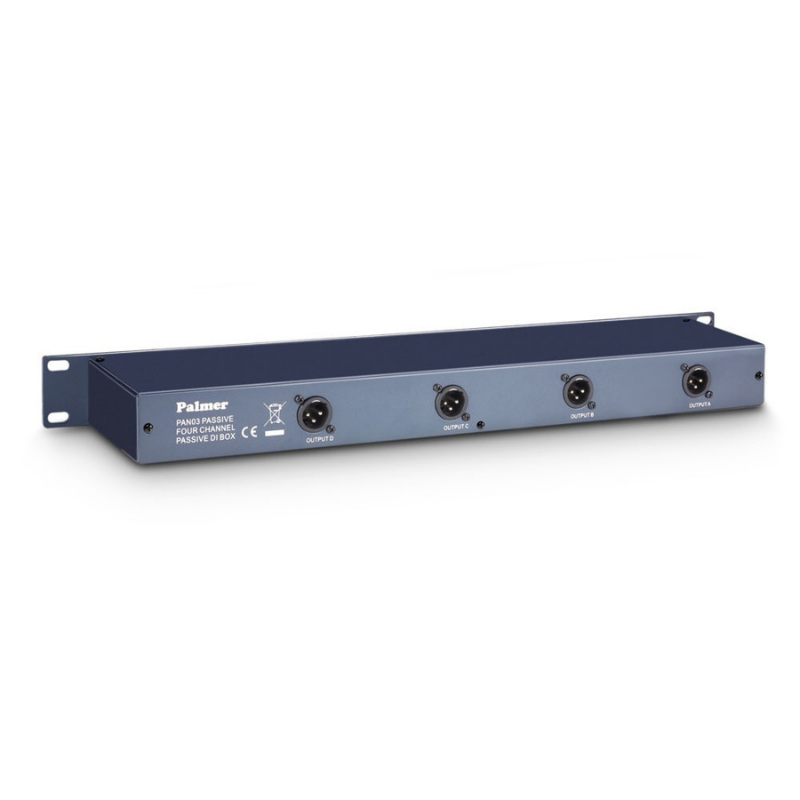

Passive 4-channel DI BOX in a 19"" housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits connection of a line or speaker signal at the user's choice. The specifications are identical with those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.
- 24 switchable balanced line outputs
- Intuitive browser-based control software
- Individual level control on each output
- Mono and stereo modes
- Multiple channel selection
- Usable for multi-room audio distribution
- High-quality analogue signal path
- Instant channel switching with no noise or interference
- XLR line inputs and built-in USB media player
- Up to three devices cascadable
Specifications
| Product type | DI Boxes |
| Type | passive |
| Channels | 4 |
| Inputs | 4 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 54 dBu |
| Input impedance | (@ 60 Hz) 68k Ohm(s) |
| Input pad | 0 / -30 dB |
| Outputs | 4 (+ 4 parallel outs) |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack |
| Output connectors | XLR |
| Max. output level | +4 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 10 - 40000 |
| Transformer balanced | Yes |
| Ratio | 10 : 1 |
| Controls | attenuation |
| Controls | ground lift |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 480 mm |
| Width | 19 "" |
| Depth | 90 mm |
| Height | 45 mm |
| Height | 1 U |
| Weight | 1.43 kg |
