Overview

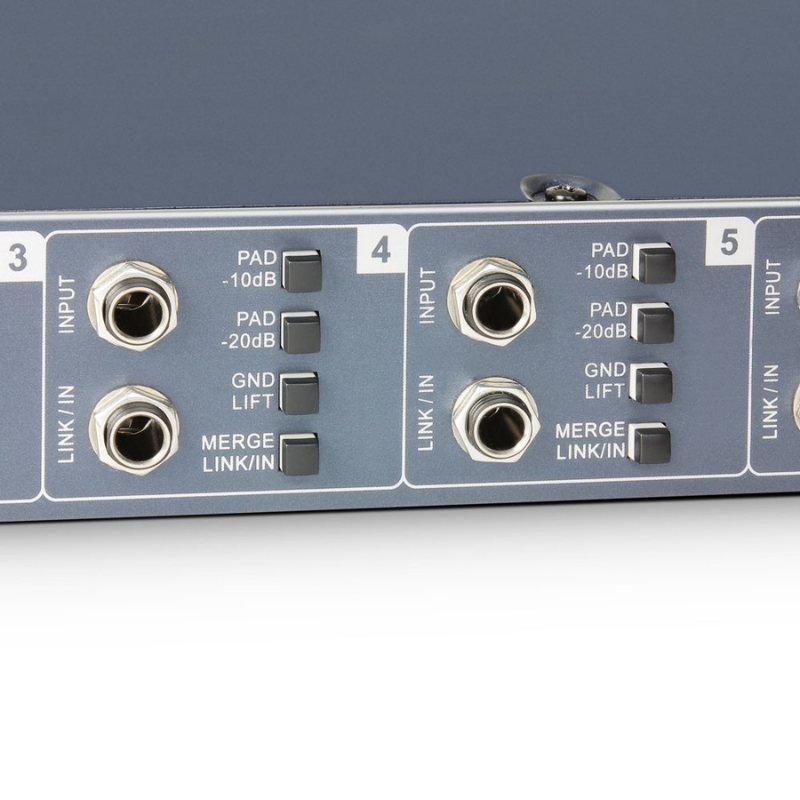

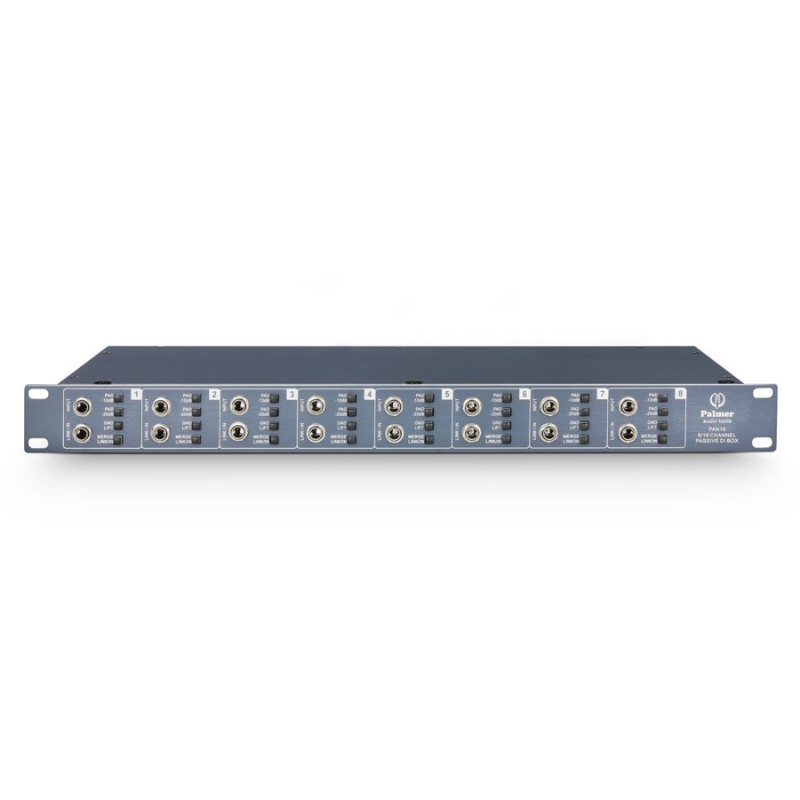

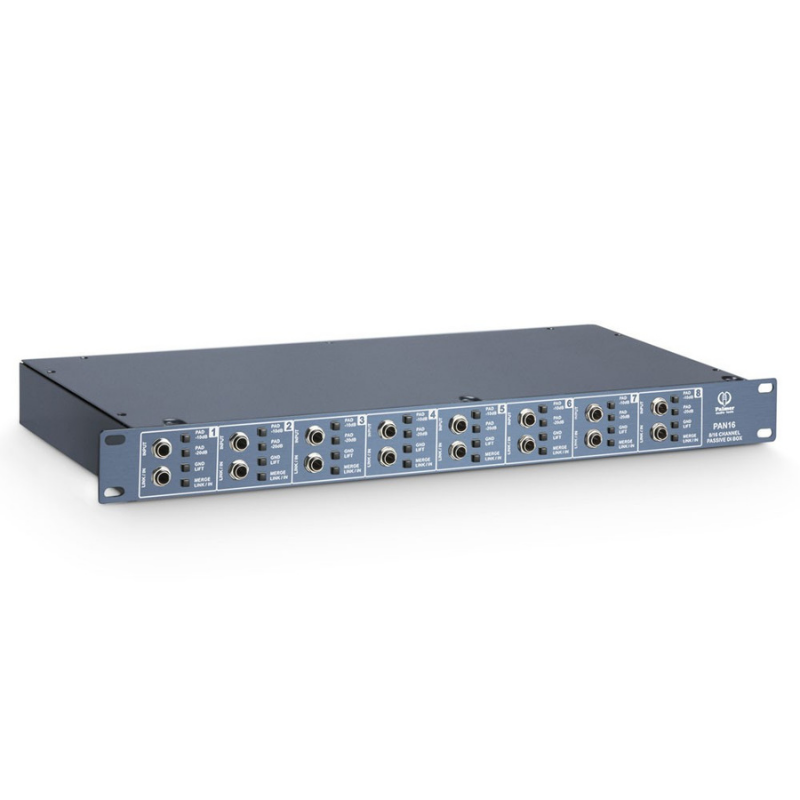

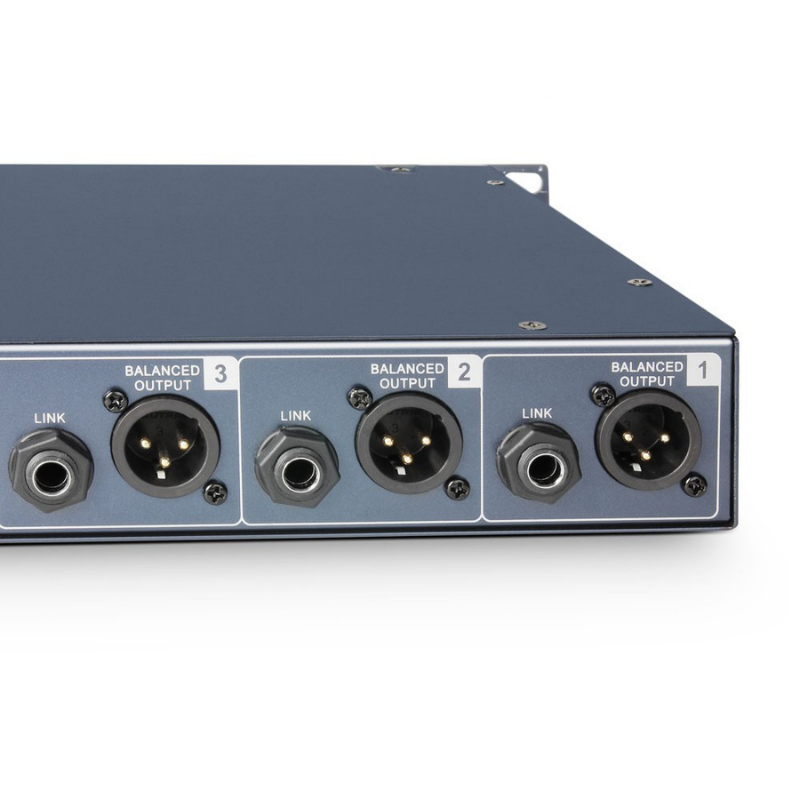

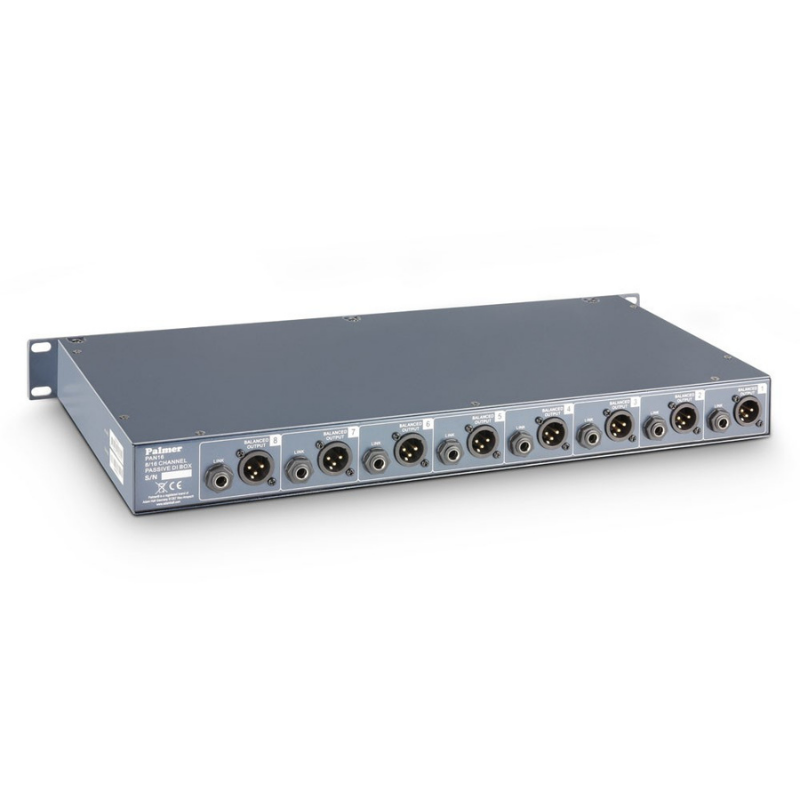

The Palmer PAN16 is an 8 channel passive DI box in a 19"" 1U rack format. Through the special MERGE LINK/IN function, the front LINK output can be used as a second input.The signal is then mono merged with the one from the INPUT jack through to the output. Thus, the PAN16 offers a maximum of 16 inputs. Two PAD buttons enable an attenuation of 10, 20 or 30 dB. The XLR outputs are electrically isolated and balanced via transformer. 8 additional LINK-sockets are also available on the rear panel of the device.

  • 19“ passive DI-Box
  • 8 Channels
  • Up to 16 Inputs
  • Link Merge Function
  • Flexible PAD: -10dB, -20dB, -30dB
  • Transformer balanced and isolated outputs
Specifications
Product type DI Boxes
Type passive
Channels 8
Inputs 8 / 16
Input connectors 6.3 mm jack
Max. input level + 54 dBu
Input impedance (@ 60 Hz) 1 M Ohm(s)
Input pad 0 / -30 dB
Outputs 4 (+ 4 Parallel Thru out)
THRU outputs/channel 2
Output connectors 6.3 mm jack
Output connectors XLR
Max. output level +4 dBu
Output impedance 600 Ohm(s)
Frequency response 10 - 40000
Transformer balanced Yes
Ratio 10 : 1
Controls ground lift
Controls merge
Controls PAD -10dB
Controls PAD -20dB
Cabinet material sheet steel
Cabinet surface Powder coated
Width 480 mm
Width 19 ""
Depth 200 mm
Height 45 mm
Height 1 U
Weight 2.39 kg
