Palmer PAOCBXLRF AoC Box XLRf - Audio Over CAT Box from Ethercon to 4 XLR Female
Overview

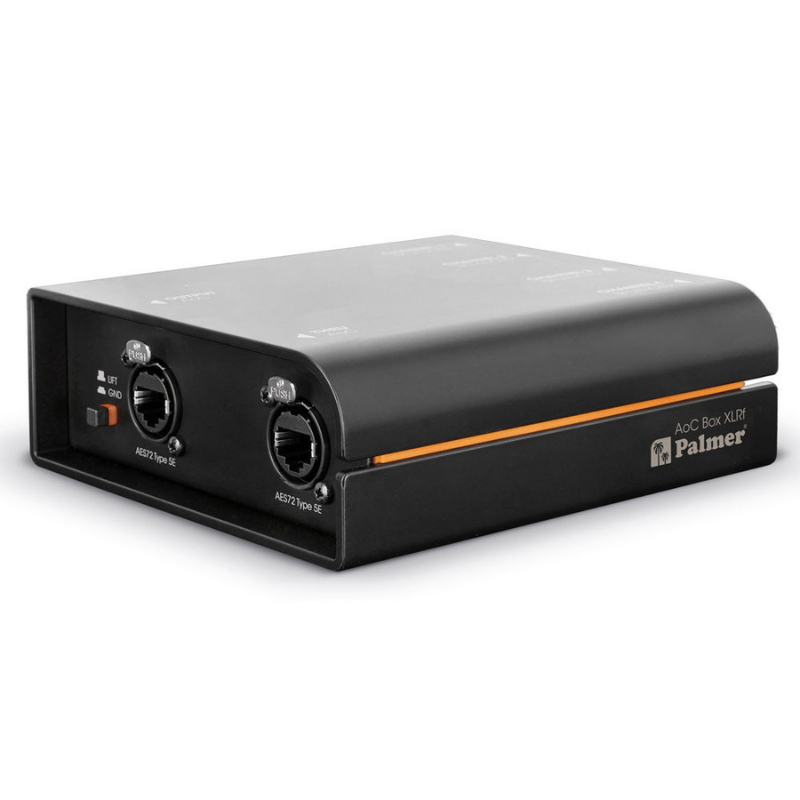

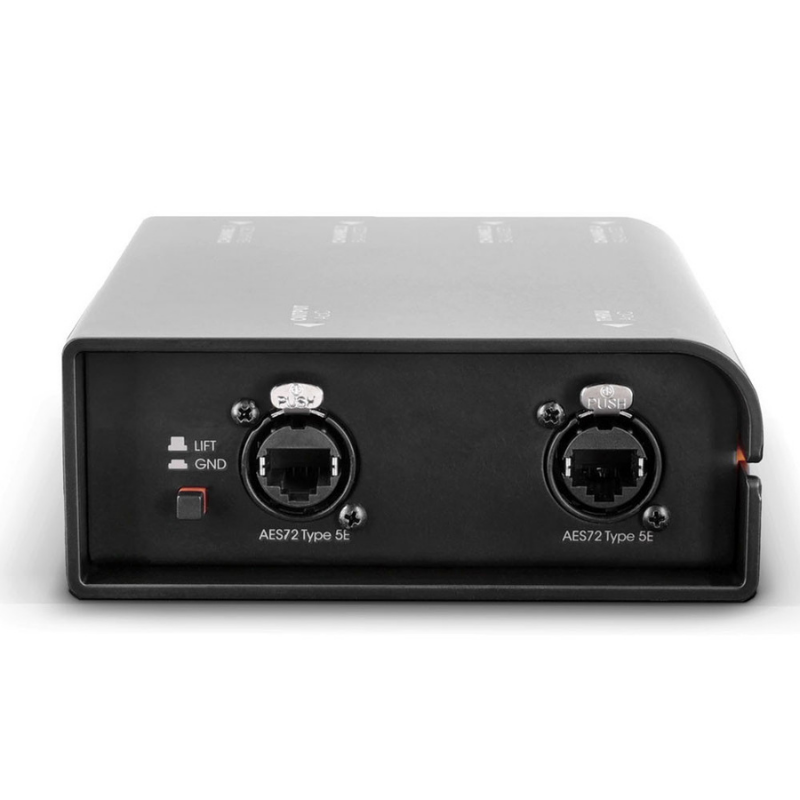

The AOC B XLR F is a multicore box that facilitates the stable transmission of 4 separate analogue and balanced audio signals or 8 digital AES3 signals through a network cable (not included). To mitigate the risk of ground loops, the etherCON connection features a ground lift switch. In addition, a secondary etherCON THRU connection – linked in parallel – facilitates the transmission of signals to external devices. Both of the etherCON connections are safeguarded against unlocking to prevent accidental cable disconnection.
In addition to audio signals, the AOC B XLR F enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.
Featuring high-quality Neutrik components as well as a solid aluminium-steel housing, the AOC B XLR F guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup.
All these factors make the AOC B XLR F a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.
- 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher (Ethernet cable not included)

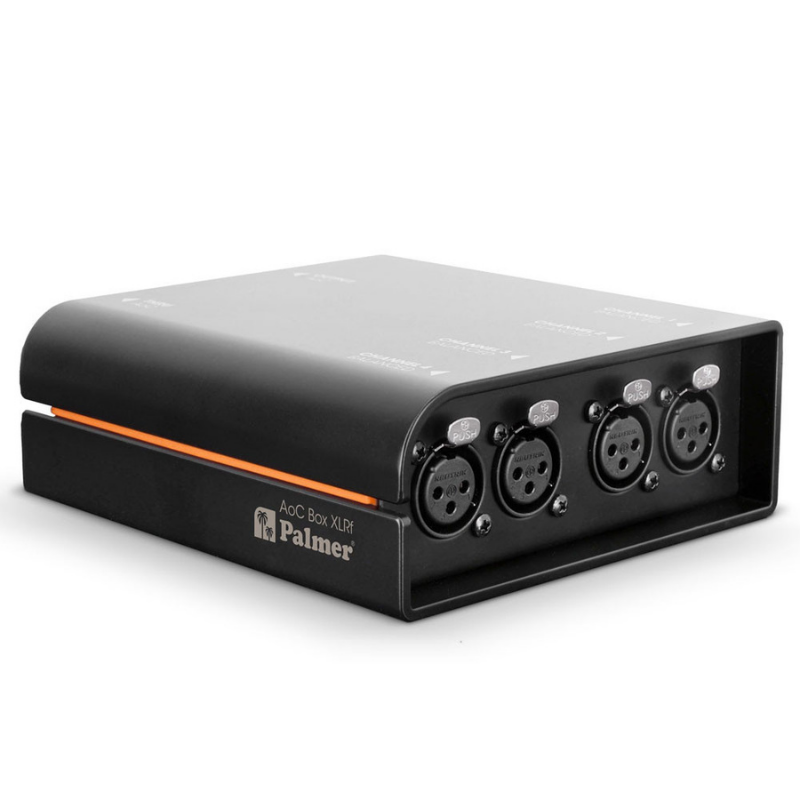

- etherCON with ground lift switch to 4 x XLR female
- Additional etherCON THRU
- AES72 Type 5E
- Compatible with 48-volt phantom power
- Premium Neutrik components
- Solid casing made of aluminium and steel
- Engineered in Germany, assembled in Europe

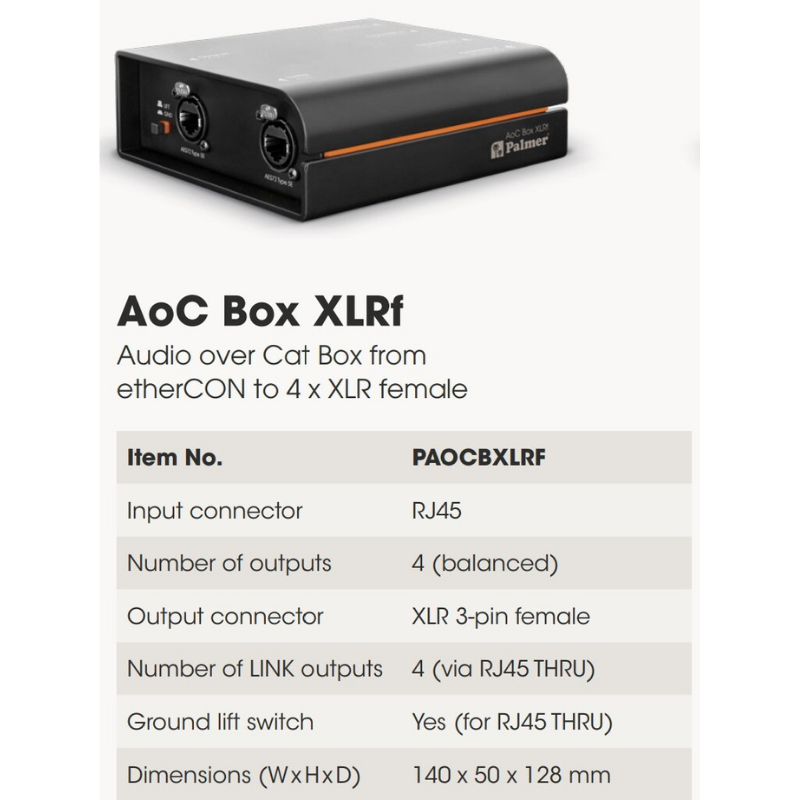

Specifications
| Product type | Aluminium |
| Product type | Audio over Cat adapter |
| Product type | Steel |
| Number of inputs | 4 |
| Input type | Balanced |
| Input Connector | RJ45 |
| Number of outputs | 4 |
| Output type | Balanced |
| Output connector | XLR 3-pin female |
| Number of LINK outputs | 4 (via RJ45 THRU) |
| Ground lift switch | yes (for RJ45 THRU) |
| Material | Aluminium |
| Material | Steel |
| Width | 128 mm |
| Depth | 140 mm |
| Height | 50 mm |
| Weight | 0,5 kg |
| Operating Temperature | - 20 - 70 °C |
| Air humidity | < 80 % ( non-condensing ) |
Audio
| Max. input level (< 1% THD, 1 kHz) | + 32 dBu dBu |
| Frequency range | 0 Hz - 20 kHz |
| THD (1 kHz, +4 dBu, unity, unweighted) | < 0,0005 % |
RJ45 pin layout (AES72 Type 5E, balanced wired, even = +)
| Pin 1 | Channel 3 - |
| Pin 2 | Channel 3 + |
| Pin 3 | Channel 4 - |
| Pin 4 | Channel 1 + |
| Pin 5 | Channel 1 - |
| Pin 6 | Channel 4 + |
| Pin 7 | Channel 2 - |
| Pin 8 | Channel 2 + |
