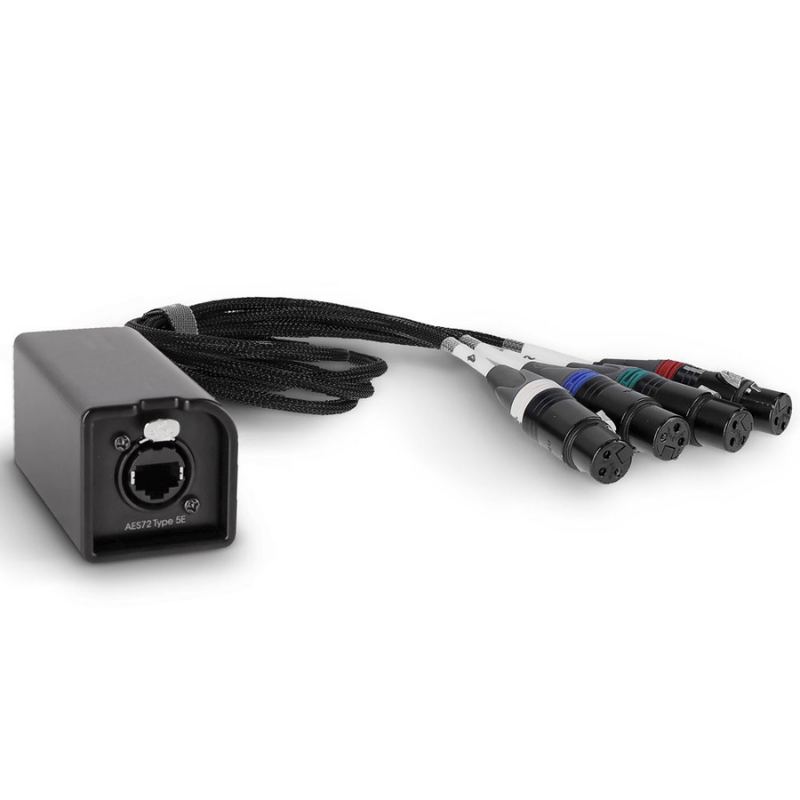

Palmer PAOCLXLRF AoC Loom XLRf - Audio Over CAT Loom from Ethercon to 4 XLR Female
Overview
The P AOC L XLR F is a multicore adapter cable that facilitates the stable transmission of 4 separate analogue and balanced audio signals or 8 digital AES3 signals through a network cable (not included). The female XLR plugs are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection.

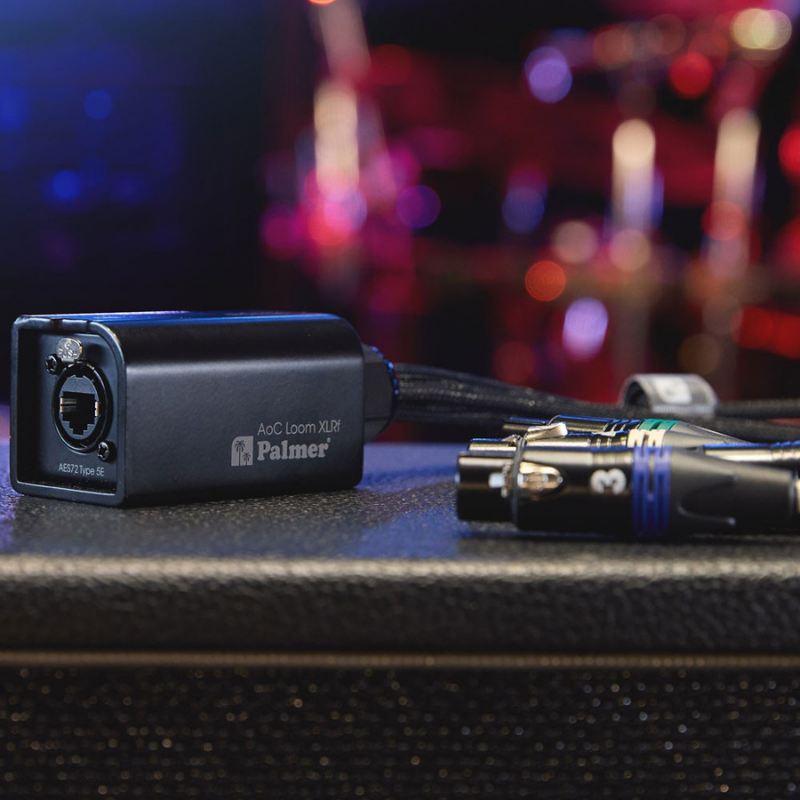

In addition to audio signals, the P AOC L XLR F enables the transmission of DMX, or MIDI control signals, along with 48-volt phantom power, via a single, standard Ethernet cable. This versatility allows it to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.
Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L XLR F guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup.
All these factors make the P AOC L XLR F a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.
- 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher (Ethernet cable not included)

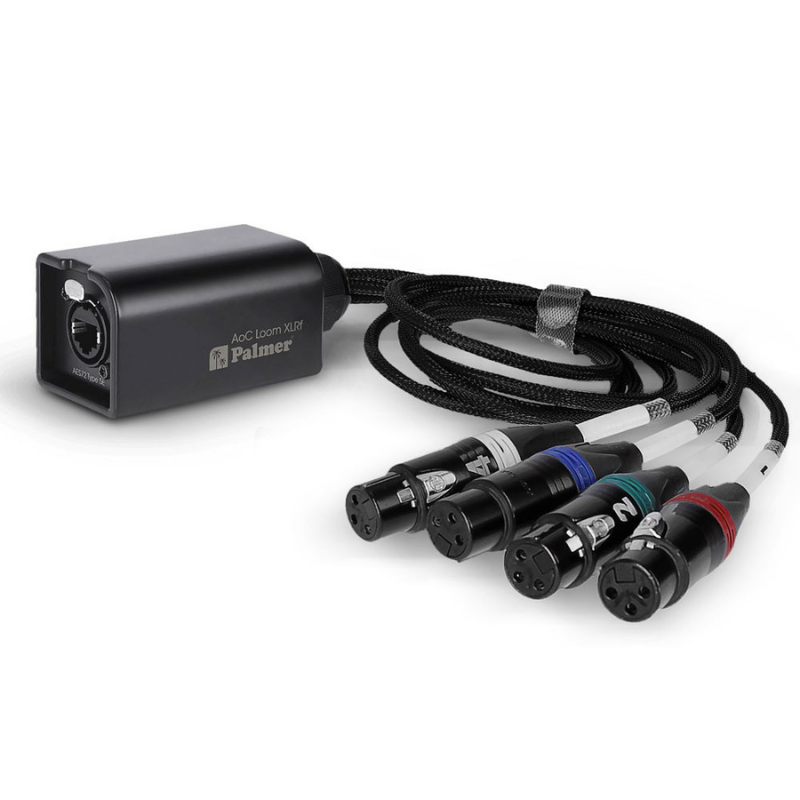

- etherCON to 4 x XLR female
- AES72 Type 5E
- Compatible with 48-volt phantom power
- Premium Neutrik components
- Robust mesh cable, 0.5 m

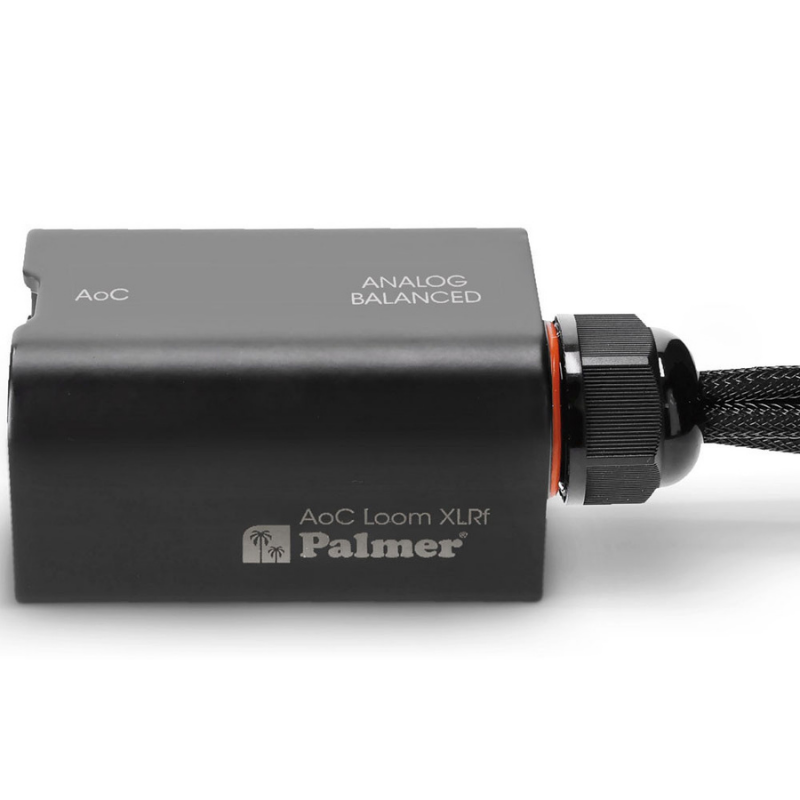

- Solid casing made of aluminium and steel
- Engineered in Germany

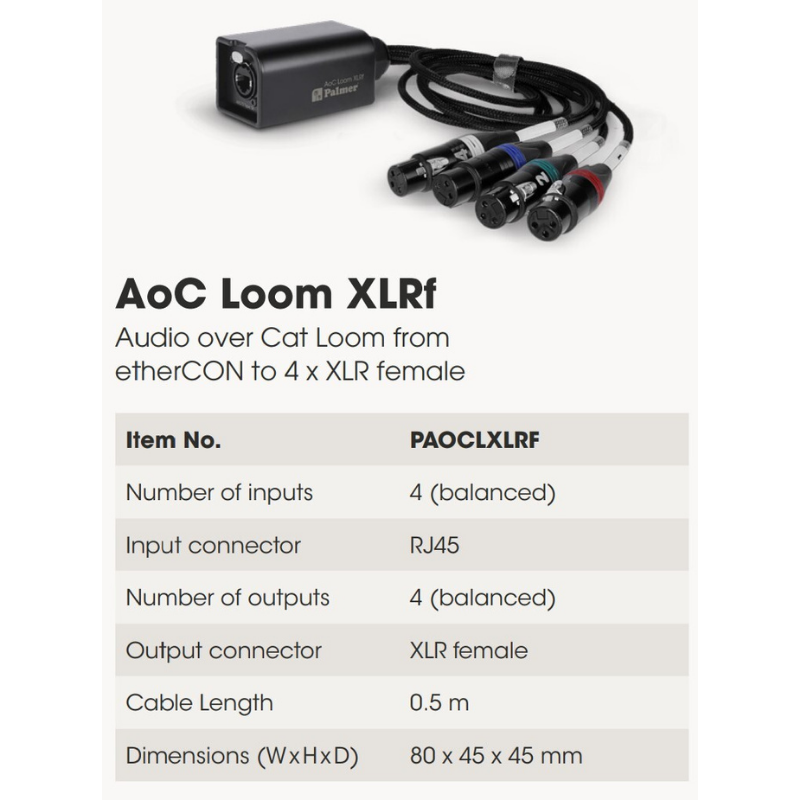

Specifications
| Product type | Audio over Cat adapter |
| Number of inputs | 4 |
| Input type | Balanced |
| Input Connector | RJ45 |
| Number of outputs | 4 |
| Output type | Balanced |
| Output connector | XLR female |
| Material | Aluminium |
| Material | Steel |
| Cable Length | 0.5 m |
| Width | 128 mm |
| Depth | 140 mm |
| Height | 50 mm |
| Weight | 0,39 kg |
| Operating Temperature | - 20 - 70 °C |
| Air humidity | < 80 % ( non-condensing ) |
Audio
| Max. input level (< 1% THD, 1 kHz) | + 32 dBu dBu |
| Frequency range | 0 Hz - 20 kHz |
| THD (1 kHz, +4 dBu, unity, unweighted) | < 0,0005 % |
RJ45 pin layout (AES72 Type 5E, balanced wired, even = +)
| Pin 1 | Channel 3 - |
| Pin 2 | Channel 3 + |
| Pin 3 | Channel 4 - |
| Pin 4 | Channel 1 + |
| Pin 5 | Channel 1 - |
| Pin 6 | Channel 4 + |
| Pin 7 | Channel 2 - |
| Pin 8 | Channel 2 + |
Channel color code
| Channel 1 | Red |
| Channel 2 | Green |
| Channel 3 | Blue |
| Channel 4 | White |
