Palmer PB 20 - 20 Channel Press Patch Box
Overview
A press patch box is a special audio signal splitter, which is developed for the specific requirements of a press conference. Via separate inputs, you can connect either a microphone or a line signal (mixer output).
Also available as a stereo version (PPB20S)

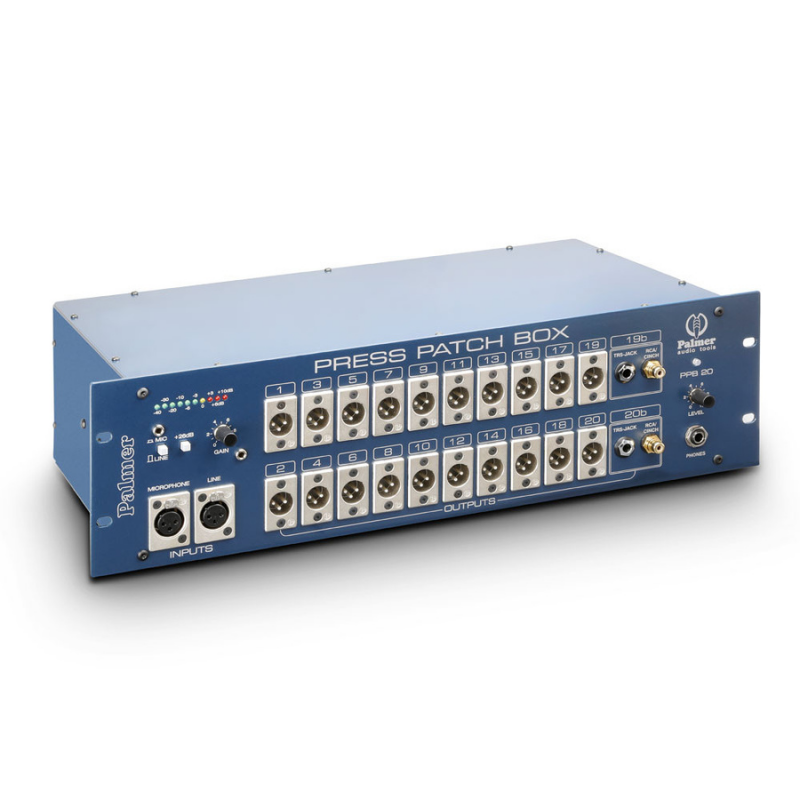

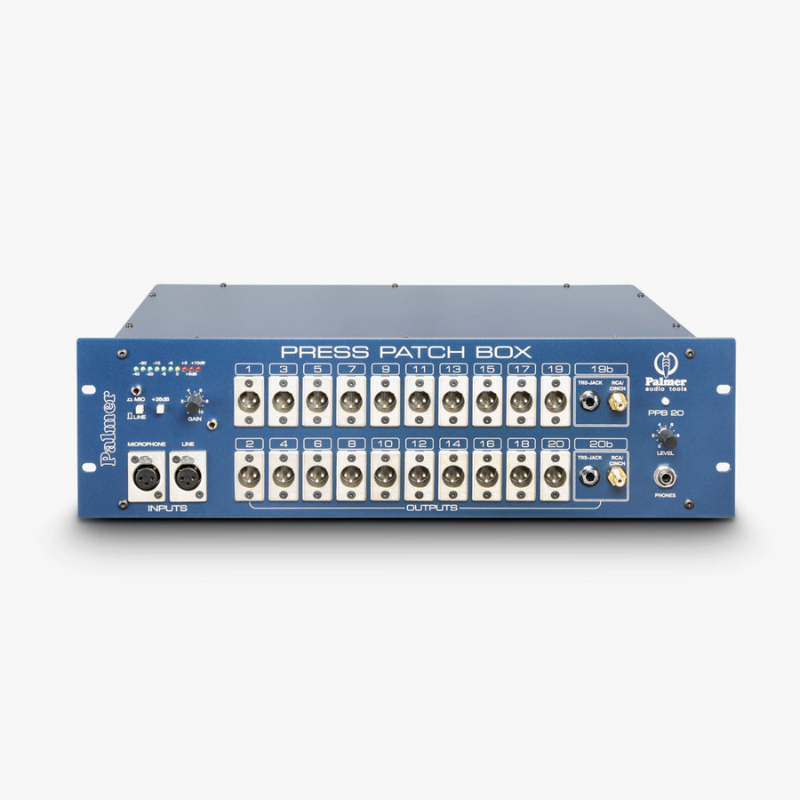

A high-quality input amplifier with balanced earth-free input allows for a level adjustment over a wide range. 20 transformer-balanced XLR/m jacks with individual driver circuits in pairs are available as outputs for video cameras or other sound recording devices.
The nominal output level is +4 dBu at 600 ohms. In addition, channels 19 and 20 are equipped with TRS phone jacks for balanced or unbalanced signals and with RCA sockets (-10 dBu nominal level).

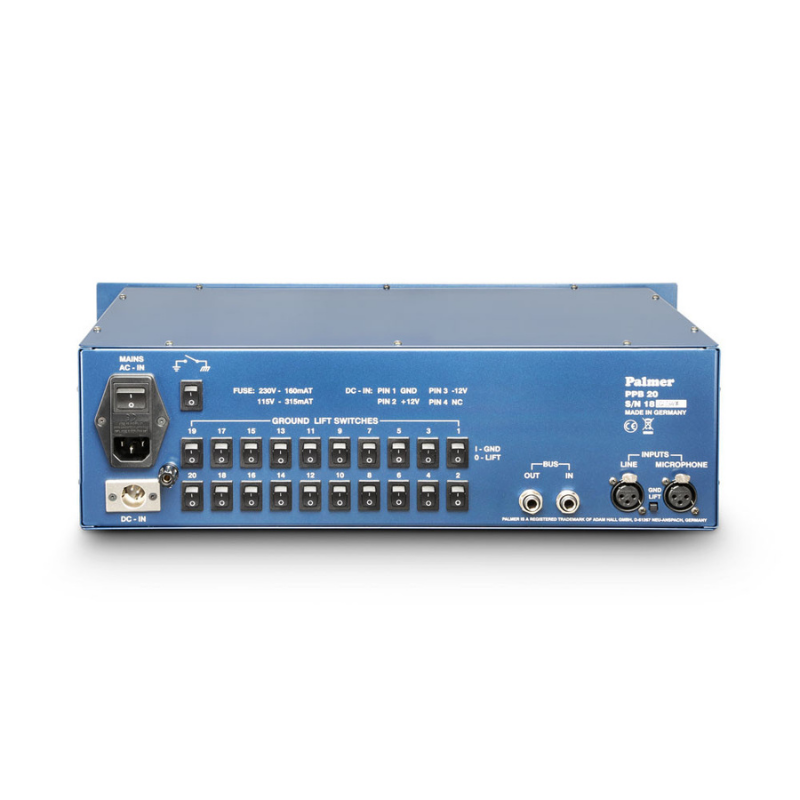

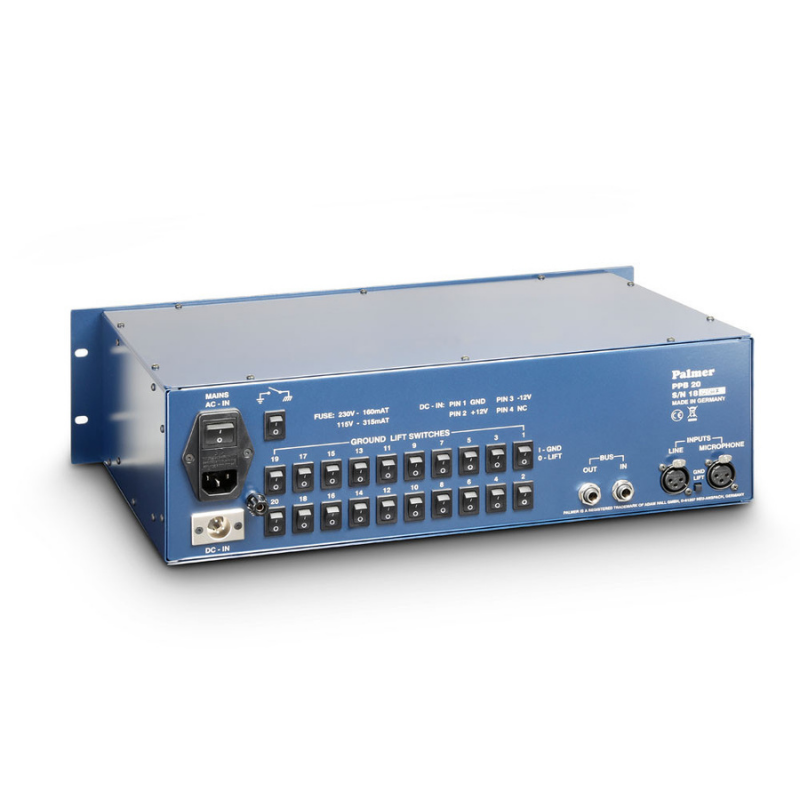

If more than 20 outputs are required, further PPB20 units can be cascaded via a BUS IN/OUT socket on the rear panel. A 10-fold LED chain and an adjustable headphone amplifier are used for signal monitoring (display range -40 to +10 dB, 0 dB display corresponds to +4 dBu output).
The PPB20 has a built-in shielded power pack. An additional DC input allows for battery operation or using an emergency power supply. PW4 is a suitable emergency power supply for two PPB20.
""
- Signal distributor with 20 outputs
- Isolated transformer-balanced XLR inputs for microphone and line level signals
- High-quality input amplifier with gain control and +20 dB switch
- 10 LEDs for level display from -40 to +10 dB
- 20 transformer-balanced XLR outputs with paired driver circuitry and individual ground lift switches on the rear
- 2 additional 6.35mm stereo jacks and RCA outputs
- Nominal output Level +4 dBu/600 Ohms, jack and RCA outputs -10 dBu
- Adjustable 6.35 mm headphone output
- Summed input and cascaded output
- Integrated shielded power supply
- DC input for emergency power supply
Specifications
| Product type | Splitters |
| Type | mic & line split |
| Split type | 1 in 20 |
| Channels | 1 |
| Inputs | 1 |
| Input connectors | XLR |
| Max. input level | Mic: 0 dBu, Line: +20 dB |
| Adjustable input | Yes |
| Number of split-outputs per canal | 20 |
| Max. output level | + 20 dB |
| Output connectors | 6.3 mm jack |
| Output connectors | RCA |
| Output connectors | XLR |
| Adjustable output | no |
| Transformer isolated outputs | Yes |
| Controls | attenuator |
| Controls | ground lift |
| Controls | input gain |
| Controls | mic/line switch |
| Controls | phones level |
| Indicators | input level |
| Indicators | Power |
| Operating voltage | integrated (115 / 230 V) |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 480 mm |
| Width | 19 "" |
| Depth | 200 mm |
| Height | 135 mm |
| Height | 3 U |
| Weight | 9.09 kg |
