Palmer TAUBER - Passive Microphone Merge Box
Overview
Do you have two microphones, but just one free microphone input?

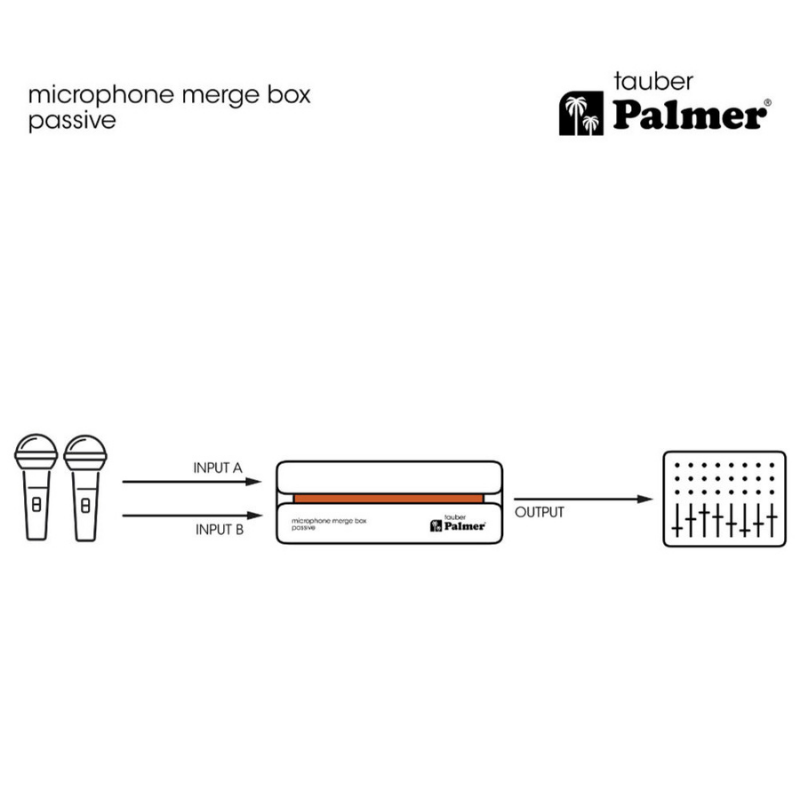

This problem has existed for as long as there have been PA systems! The Palmer tauber Microphone Merge Box solves the problem in a simple way. It has two balanced microphone inputs that are summed via a resistor matrix to a balanced mono signal which is routed to a single XLR output. It's as easy as it sounds!
It can be used for two dynamic microphones or two condenser microphones. Ideally, they should be identical or similar microphone types to avoid any undesirable level differences. Phantom power is passed through to both inputs.
Due to its passive circuitry, the tauber works without any sound colouration and does not require a power supply. The casing and sockets are extremely robust and longlasting.
- For connecting two microphones to one microphone input
- Two balanced XLR inputs
- One balanced XLR output
- For two dynamic microphones or two condenser microphones
- Phantom power can pass through
- Reliable problem-solver for PA systems with a shortage of mixer channels
- Extremely fail-safe
- Passive switching, no power supply required
- Solid casing made of aluminium and steel
- Incl. rewritable tour label for attachment onto the back of the tauber
- Engineered in Germany
Specifications
| Product type | Microphone summing unit |
| Type | passive |
| Channels | 1 |
| Transformer isolated | no |
| Inputs | 2 |
| Input type | balanced |
| Input connectors | XLR |
| Outputs | 1 |
| Output type | balanced |
| Output connectors | XLR |
| Housing | Aluminium continuous casting |
| Dimensions (W x H x D) | 50 x 140 x 68 mm |
| Weight | 0,36 kg |
| Ambient temperature (in operation) | - 20 - 70 °C |
| Relative Humidity | < 80% (non-condensing) |
| Accessories (included) | Inscription label (tour label) |
| Accessories (included) | rubber feet |
Audio
| Input impedance (1 kHz) | 644 kOhm |
| Output impedance (1 kHz) | 400 Ohm(s) |
