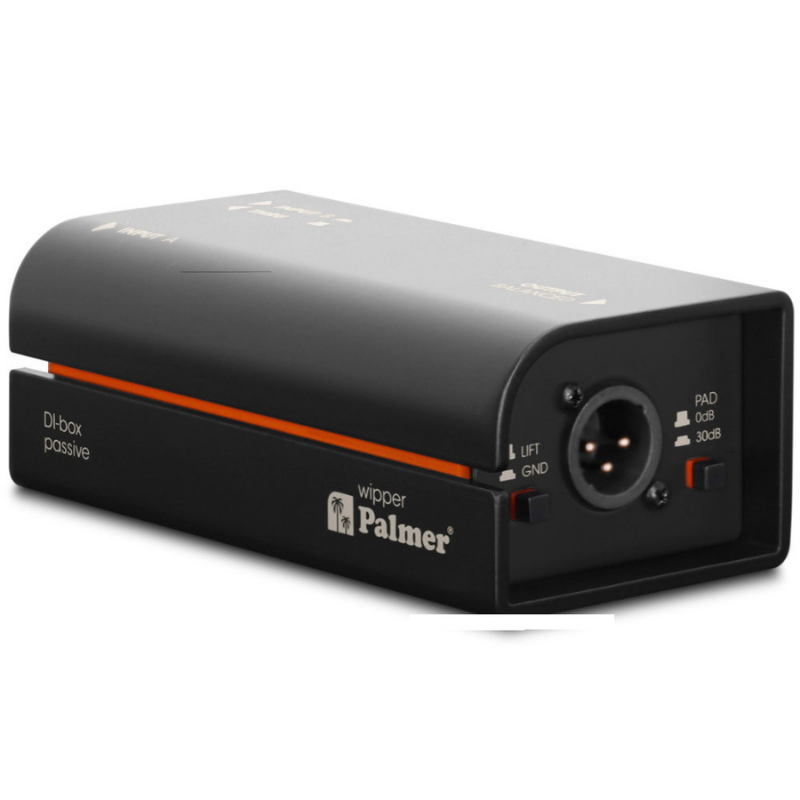

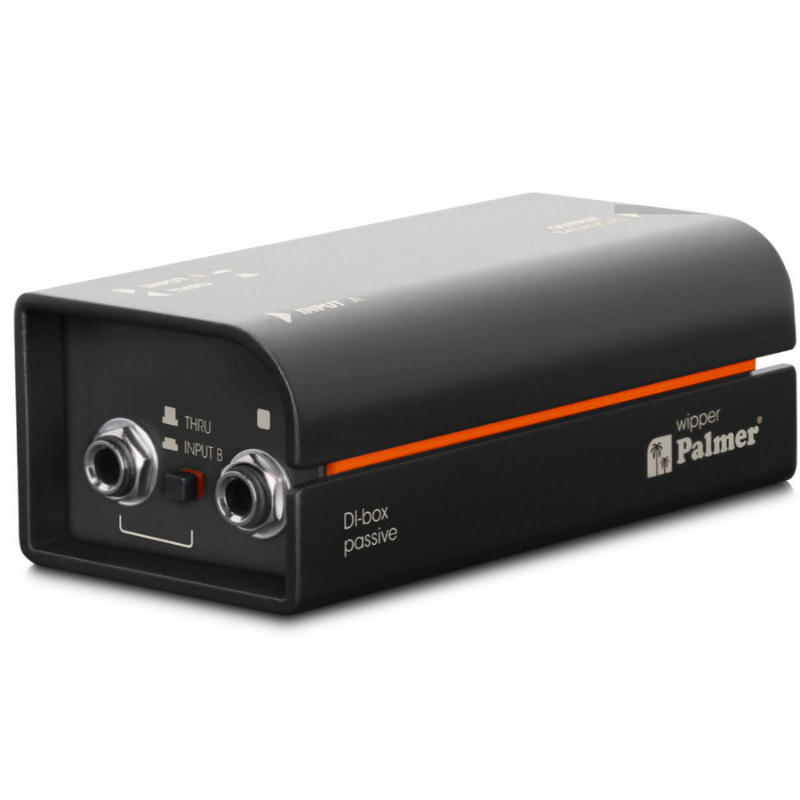

Palmer WIPPER - Passive DI Box
Overview
If you need to pick up the pure sound of your guitar, bass or keyboard, you need a high-quality DI-Box which does not alter the natural sound or add any noise.
The Palmer wipper is a single channel passive DI box with a high-quality transformer, which also handles high levels without distorting or losing the pure sound of your instrument. With a ratio of 10:1, it can be used for optimal impedance and level adjustment to connect instrument signals from guitars, bass, keyboards or synthesisers to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference. Thanks to a switchable 30 dB pre-attenuation, the wipper can also be looped in between amplifier output and the loudspeaker.
The Palmer wipper is an easy-to-use problem solver. Its passive construction means it does not need any batteries or a phantom power. This makes it extremely fail-safe and also virtually indestructible thanks to its aluminum and steel casing. With its ability to retain the natural sound of your instrument, it also cuts a fine figure studio and live environments. This way you can simply be true to your sound.
- Balancing and impedance matching for guitar, bass, keyboards & synthesizers
- Eliminates ground loop hum thanks to galvanic transformer isolation
- Extremely fail-safe, no power supply required
- THRU-output for passing the input signal to the amplifier

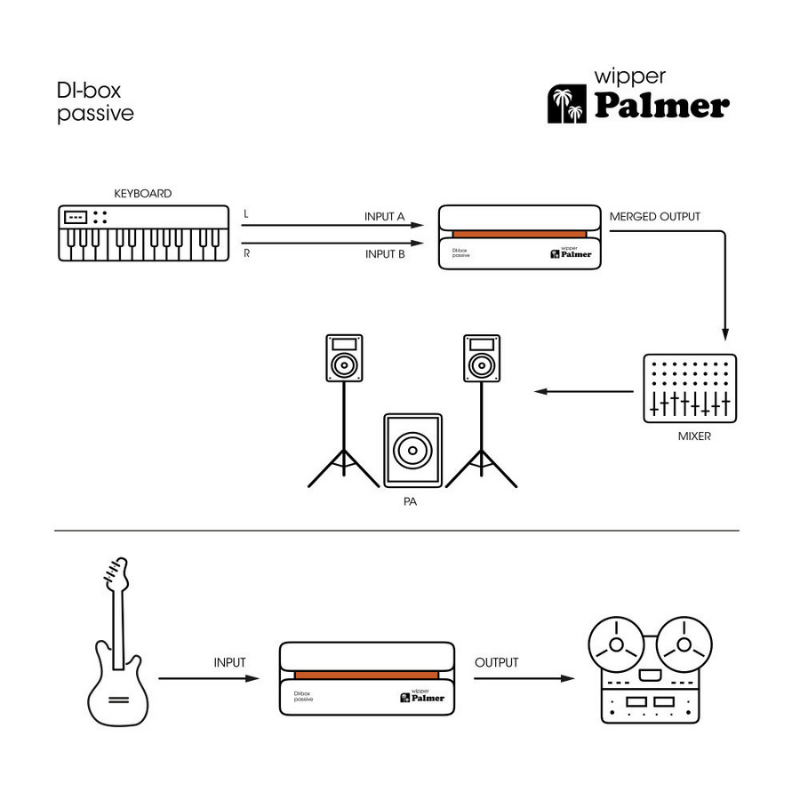

- THRU-output jack can also be used as second input to sum two input signals
- Pure and unaltered low-noise audio
- Handles even high-level inputs without distortion
- Switchable 30 dB pad for extremely high input levels (e.g. amplifier output)
- Solid casing made of aluminium and steel

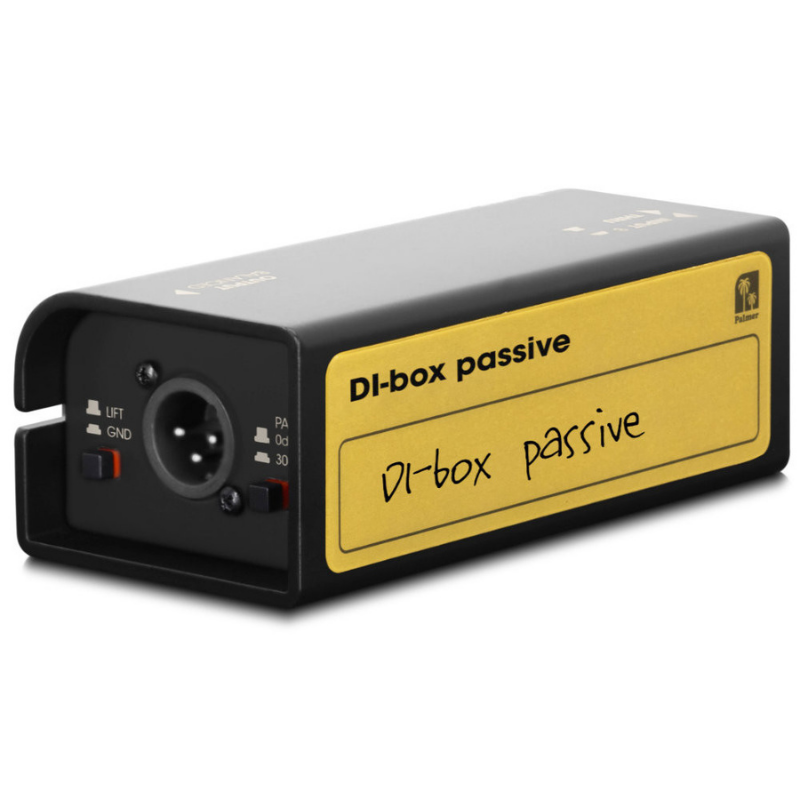

- Incl. rewritable tour label for attachment onto the back of the wipper
- Engineered in Germany
Specifications
| Product type | DI box |
| Type | passive |
| Channels | 1 |
| Transformer isolated | yes |
| Inputs | 2 |
| Input type | unbalanced |
| Input connectors | 6.3 mm jack |
| Outputs | 1 |
| Output type | balanced |
| Output connectors | XLR |
| THRU outputs per channel | 1 |
| Input attenuation (Pad) | 0 / 30 dB |
| Ground lift switch | Yes |
| Additional Features | mono merge |
| Housing | Aluminium continuous casting |
| Dimensions (W x H x D) | 50 x 140 x 68 mm |
| Weight | 0,43 kg |
| Ambient temperature (in operation) | - 20 - 70 °C |
| Relative Humidity | < 80% (non-condensing) |
| Accessories (included) | Inscription label (tour label) |
| Accessories (included) | rubber feet |
Audio
| Max. input level (< 1% THD, 20 Hz) | +24 dBu |
| Max. input level (< 1% THD, 1 kHz) | +32 dBu |
| Frequency response (±0,2dB, relative 1kHz) | 10 Hz - 60 kHz |
| Input impedance (1 kHz, Setting: 0 dB Pad, THRU) | 47 kOhm |
| Output impedance (1 kHz, Setting : 0 dB Pad, THRU) | 33 Ohm |
| THD (30 Hz, +4 dBu, unity, unweighted) | < 0,02 % |
| THD (1 kHz, +4 dBu, unity, unweighted) | < 0,0007 % |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu) | < 0,002 % |
| Transformer ratio | 10 : 1 |
